    MIT: A Materials Scientist’s Creative Playground

    Staff ReporterBy Staff ReporterMay 1, 2026No Comments2 Mins Read
    Share Facebook Twitter Pinterest LinkedIn Tumblr Reddit Telegram Email
    Share
    Facebook Twitter LinkedIn Pinterest Email

    Quick Takeaways

    1. MIT.nano installed a state-of-the-art MBE system to improve qubit research.
    2. The system enables atomic-scale film growth, crucial for robust quantum devices.
    3. It allows precise, non-destructive analysis of buried materials and interfaces.
    4. The cleanroom environment minimizes variables, enhancing device scalability and performance.

    MIT’s New MBE System Advances Quantum Research

    MIT.nano has installed a sophisticated molecular beam epitaxy (MBE) system in its cleanroom. This state-of-the-art equipment allows scientists to grow and analyze thin films at the atomic level. Its main goal is to improve the materials used to make quantum bits, or qubits, which are key to quantum computing. Because qubits are very sensitive, understanding their material properties can help reduce errors and boost device performance.

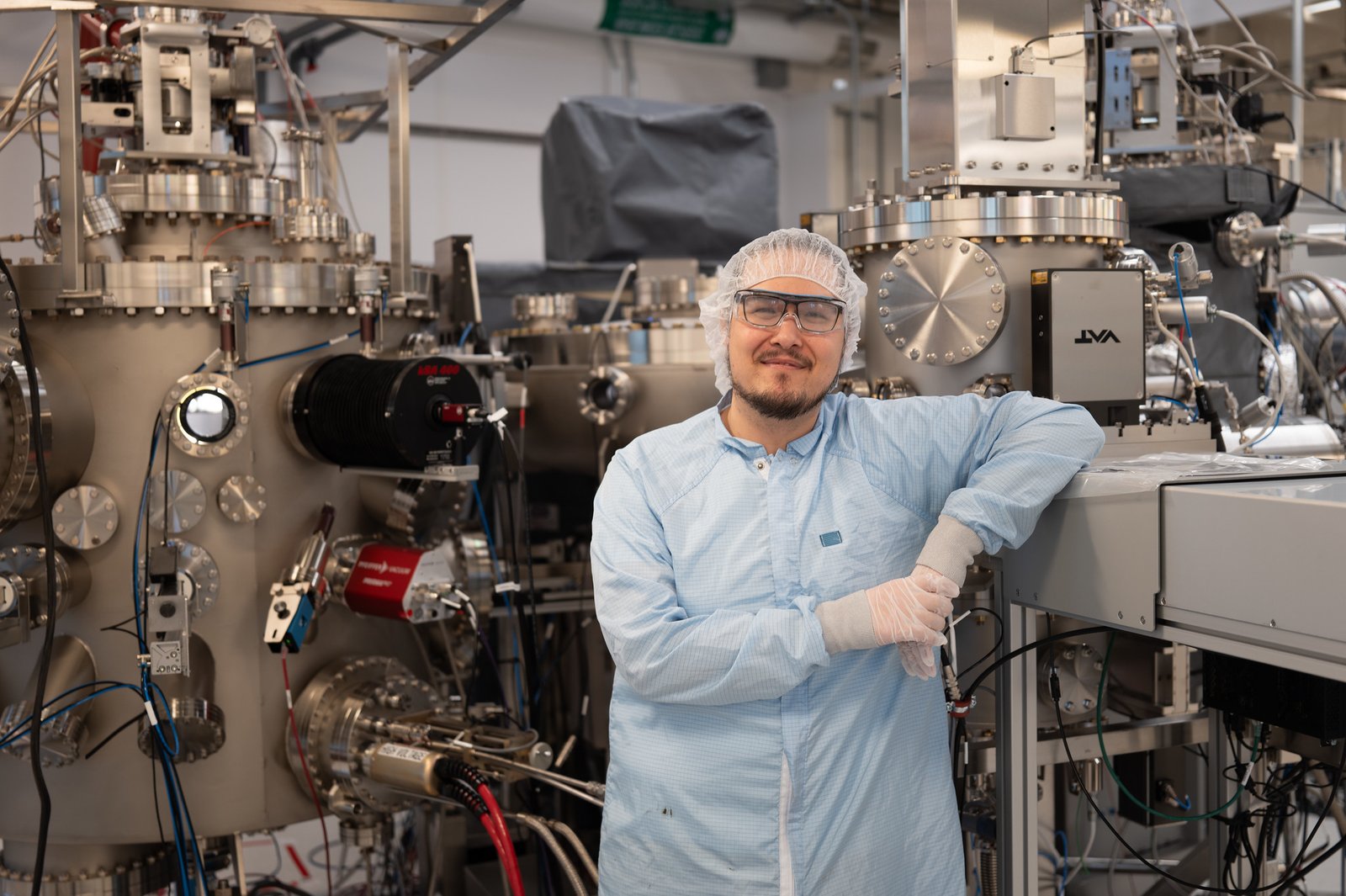

    The MBE system is enormous, covering a 600-square-foot area and composed of six connected chambers. The process starts by placing a wafer into the load lock, where it transitions from air to vacuum. The wafer then moves through several chambers for material deposition, oxidation, and analysis—mainly using X-ray photoelectron spectroscopy (XPS). This setup enables scientists to study the layers of materials without disturbing their structure. Such detailed insights have been hard to achieve previously, especially with buried interfaces inside the materials.

    Impact on Quantum and Materials Science

    The MBE system supports research into how thin films grow and interact within quantum devices. Understanding these processes is crucial because improving qubit reliability depends on better material control. MIT.nano’s environment ensures extreme cleanliness and stability, essential for producing high-quality materials. The system’s location at MIT offers access to other fabrication tools, making it easier to develop scalable, reliable quantum devices.

    The project was funded through grants from the Army Research Office and the Laboratory for Physical Sciences. By providing a controlled space for such advanced research, MIT aims to push the boundaries of quantum science. The new equipment aligns with MIT’s efforts to solve complex scientific challenges and establish itself as a leader in quantum technology development.
